86 Inch Smart Digital Blackboard School Teaching Blackboard With Projector & Dual System
86 Inch 4K 3840 x 2160 Display
500 cd/m² 5000:1 Contrast Ratio
10/20 Touch Finger & Stylus Pen
Dual System Android & Windows OPS
Product Overview

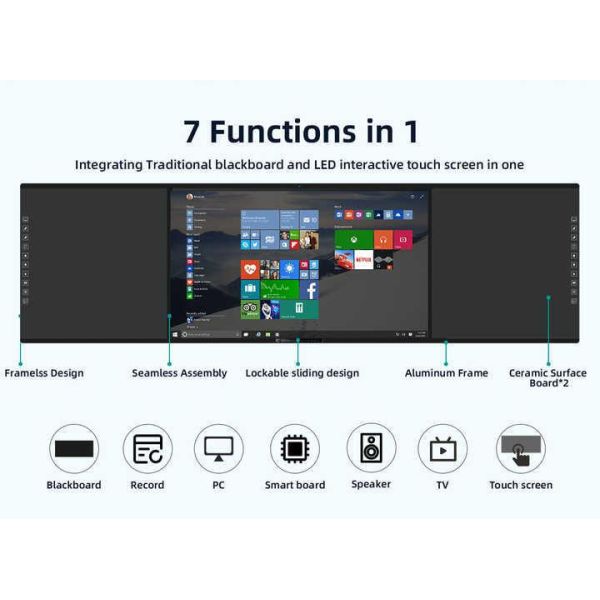

The XYC86 interactive touch screen display (smart nano blackboard) seamlessly combines traditional blackboard functionality with modern multimedia teaching capabilities. Engineered for primary schools, higher-education lecture auditoriums, and corporate training rooms, this comprehensive device integrates a physical writing board, 4K UHD display panel, microphone array, audio speaker, visualization system, and central operation console into a single unified teaching station.
Featuring a large 86-inch screen size (with 65-inch and 75-inch configuration options available), the panel delivers a high luminance brightness of 500 cd/m² and a 5000:1 dynamic contrast ratio. This ensures every student and boardroom participant views crystal-clear courseware, video lectures, and mathematical formulas from any angle without optical reflections.
Key Capabilities
Display Optics 86" 4K UHD Panel
100% A-grade zero-defect 3840x2160 panel from LG & BOE OEM factories with anti-glare tempered glass.
Touch Sensing 10/20 Point Capacitive
2.5ms rapid response time supporting finger and stylus pen touch with ≤2mm response deviation.
Dual System Android & Windows OPS
Built-in Android OS paired with modular OPS PC slot for seamless Windows computing integration.
AV Suite Integrated Audio & Mic
Optional camera, microphone array, and stereo speakers engineered for hybrid lectures and video conferencing.
- 86-inch smart board with built-in Android operating system and touch controls
- Modular OPS slot available for optional Windows PC computing integration
- Optional camera, noise-canceling microphone, and mobile stand accessories
- Multi-touch writing panel supporting finger touch or capacitive stylus pen
- 10/20-point multi-touch writing capability with 60,000,000 touch lifespan
- Universal voltage compliance (180-260V AC) for international export deployment
- First-tier A-grade BOE/LG 4K UHD anti-glare display screen
Technical Specifications
| Screen Specifications |
| Dimension & Size | 86 Inch Central Display Panel (65" / 75" / 86" Available) |
| Display Area | 1660.24 mm (H) x 930.26 mm (V) |
| Point Distance | 0.143 mm (H) x 0.430 mm (V) |
| Native Resolution | 3840 x 2160 P (4K UHD) |
| Display Aspect Ratio | 16:9 Widescreen |
| Panel Brightness Output | 500 cd/m² High Luminance |
| Dynamic Contrast Ratio | 5000:1 High Contrast Ratio |
| Equality of Brightness | > 70% Uniformity |
| Response Time | 4.0 ms Panel Response Time |
| Display Color Depth | 16.7 Million Colors (8-BIT) |
| Backlight Type & Lifespan | D-LED Backlight (> 50,000 Hours Lifespan) |
| Touch Specifications |
| Touch Points Capacity | 10 / 20 Points Simultaneous Multi-Touch |
| Writing Input Method | Finger Touch or Capacitive Stylus Pen |
| Response Deviation | ≤ 2 mm High Precision Track |
| Touch Response Speed | 2.5 ms Ultra-Fast Touch Response |
| Touch Sensor Lifespan | ≥ 60,000,000 Touches Continuous Operating Life |
For detailed custom parameters, OEM/ODM options, and factory direct quotations, please contact our customer support team.
Applications & Deployment Scenarios
The MTHGH XYC86 digital blackboard provides an all-in-one interactive platform suitable for diverse institutional and commercial deployment scenarios:
Academic K-12 & Higher Education: Enables educators to combine traditional chalk writing on magnetic nano sub-boards with live 4K screen mirroring, interactive math tools, and remote student engagement software.
Corporate Boardrooms & Strategy Rooms: Connects laptops, tablets, and mobile devices effortlessly via HDMI and USB ports. Enables executives to annotate financial spreadsheets, project engineering blueprints, and lead hybrid Zoom/Teams video conferences.
Vocational Training Facilities: Delivers interactive software simulations, high-resolution video demonstrations, and multi-user team problem-solving exercises.
Company Capabilities & Team
Xingyicheng Technology is a specialized manufacturer of interactive touch products. Our comprehensive product portfolio includes interactive whiteboards, smart digital blackboards, interactive flat panels, commercial touch displays, digital signage, OPS PC modules, and projectors for global educational and enterprise applications.
Frequently Asked Questions
A. Do you support OEM/ODM customization?
Yes, we offer complete OEM/ODM customization covering exterior appearance, screen dimensions, frame color, button layouts, system configurations, and custom logo branding.
Standard Customization Process:
1. Provide your specific project requirements.
2. Our design engineers draft the technical blueprint.
3. You review and confirm the design draft.
4. Mass factory production commences.
B. What product categories do you manufacture?
Our factory produces interactive whiteboards, smart digital blackboards, advertising touch displays, digital signage totems, modular OPS PC units, and interactive display accessories.
C. What are your factory manufacturing advantages?
1. Patented design engineering researched, developed, and produced in our own factory.
2. 12-month standard factory warranty with optional extended 3-year warranty packages.
3. First-tier A-grade zero-defect 4K UHD anti-glare display screens sourced directly from LG and BOE OEM lines.
4. 100% new component testing with an industry-leading low repair rate below 1%.
5. Flexible MOQ starting at 1 unit with volume discounts for bulk procurement.
D. What trade and shipping terms are available?
1. Trade terms: EXW, FOB, CIF, DAP, DDP.
2. Payment options: Alipay, L/C, T/T.
3. Lead time: 15 working days for bulk orders and evaluation samples.
4. Packaging: Reinforced neutral carton or large-size heavy-duty wooden crate.
5. Logistics: International sea freight, air freight, and express courier delivery.
Product Gallery & Showroom Installations
4K Educational Chart & Lesson Display
Showroom Mobile Stand Setup
